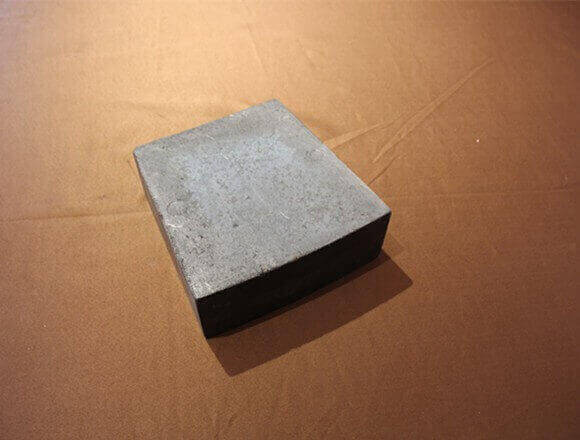

Al2O3-SiC-C Brick is developed with corundum, andalusite, flake graphite and SiC as the main raw materials, and bonded by phenolic resin. After being mixed, high pressure pressed, and firing treatment, Al2O3-SiC-C brick is characterized with excellent slag erosion resistance, thermal shock resistance, abrasion resistance and achieve good performance.
Al2O3-SiC-C Brick is developed with corundum, andalusite, flake graphite and SiC as the main raw materials, and bonded by phenolic resin. After being mixed, high pressure pressed, and firing treatment, Al2O3-SiC-C brick is characterized with excellent slag erosion resistance, thermal shock resistance, abrasion resistance and achieve good performance.
Applications of Al2O3-SiC-C Brick:
●Impacting zone, slag line, iron zone and top part of Torpedo
●Impacting zone, slag line, iron zone and bottom of iron ladle
Advantages of Al2O3-SiC-C Brick:
Excellent slag erosion resistance
●Thermal shock resistance
●Abrasion resistance
● Customerize mould according to different size requirements for free
|
Product code |
CH-ASC-65A |
CH-ASC-65C |
CH-ASC-65B |
CH-ASC-60 |
|
Al2O3/% |
≥65 |
≥65 |
≥65 |
≥60 |
|
SIC+C% |
≥18 |
≥18 |
≥20 |
≥20 |
|
Bulk density/g.cm3 |
≥2.85（200℃，24h） |
≥2.75（200℃，24h） |
≥2.85（200℃，24h） |
≥2.80（200℃，24h） |
|
Apparent porosity／％ |
≤10（200℃，24h） |
≤10（200℃，24h） |
≤10（200℃，24h） |
≤10（200℃，24h） |
|
Cold crushing strength/Mpa |
≥50(200℃，24h) |
≥40(200℃，24h) |
≥40(200℃，24h) |
≥40(200℃，24h) |
|
Permanent linear change／％ |
0-+1.0(1400℃，3h) |
0-+1.0(1400℃，3h) |
0-+1.0(1400℃，3h) |
0-+1.0(1400℃，3h) |
|
Application |
Sidewall |
Top |
Impact area |
Slag line |

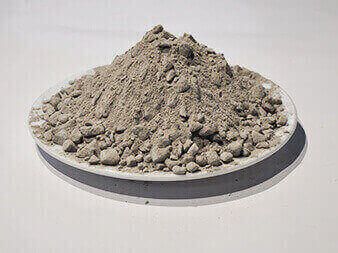

The appropriative fireproof castable for kiln door is a high-performance castable developed according to the working conditions of the rotary kiln. Appropriative refractory castable for kiln door has good performance of volume stability, high strength, good wear resistance, thermal shock resistance, corrosion resistance，anti-stripping when using.
Dry anti-seepage refractories works well with simple construction, good thermal insulation effect and strong anti-permeability. The working principle of Dry anti-seepage refractory material is to react alkali ions in materials and metal liquids at high temperature, form isolation layer on the surface, prevent sodium salt from going to cathode block.
Composite spinel firebrick is a product obtained by high-pressure molding and high-temperature sintering using high-purity magnesia andmagnesia-chromium composite spinel as main raw materials.
If you need our products please write down any questions, we will reply as soon as possible.
