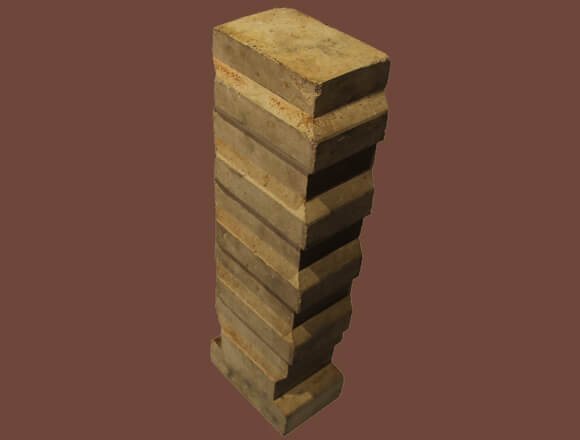

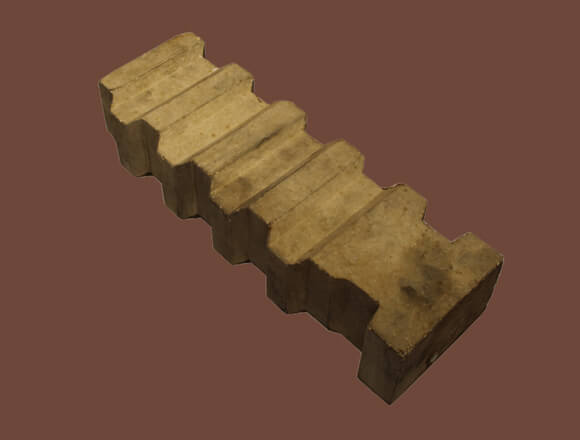

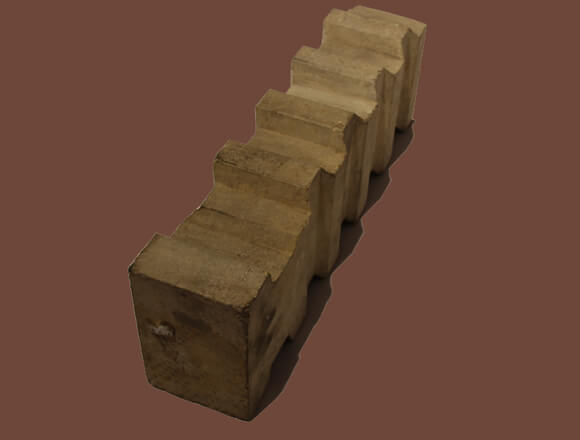

The anchor refractory brick is also called hanger brick. The anchor brick is similar to the material of the furnace lining castable, shaped by machine pressing, high temperature fired,has good thermal shock resistance and high strength,and is used on multiple heating furnaces to achieve good performance.

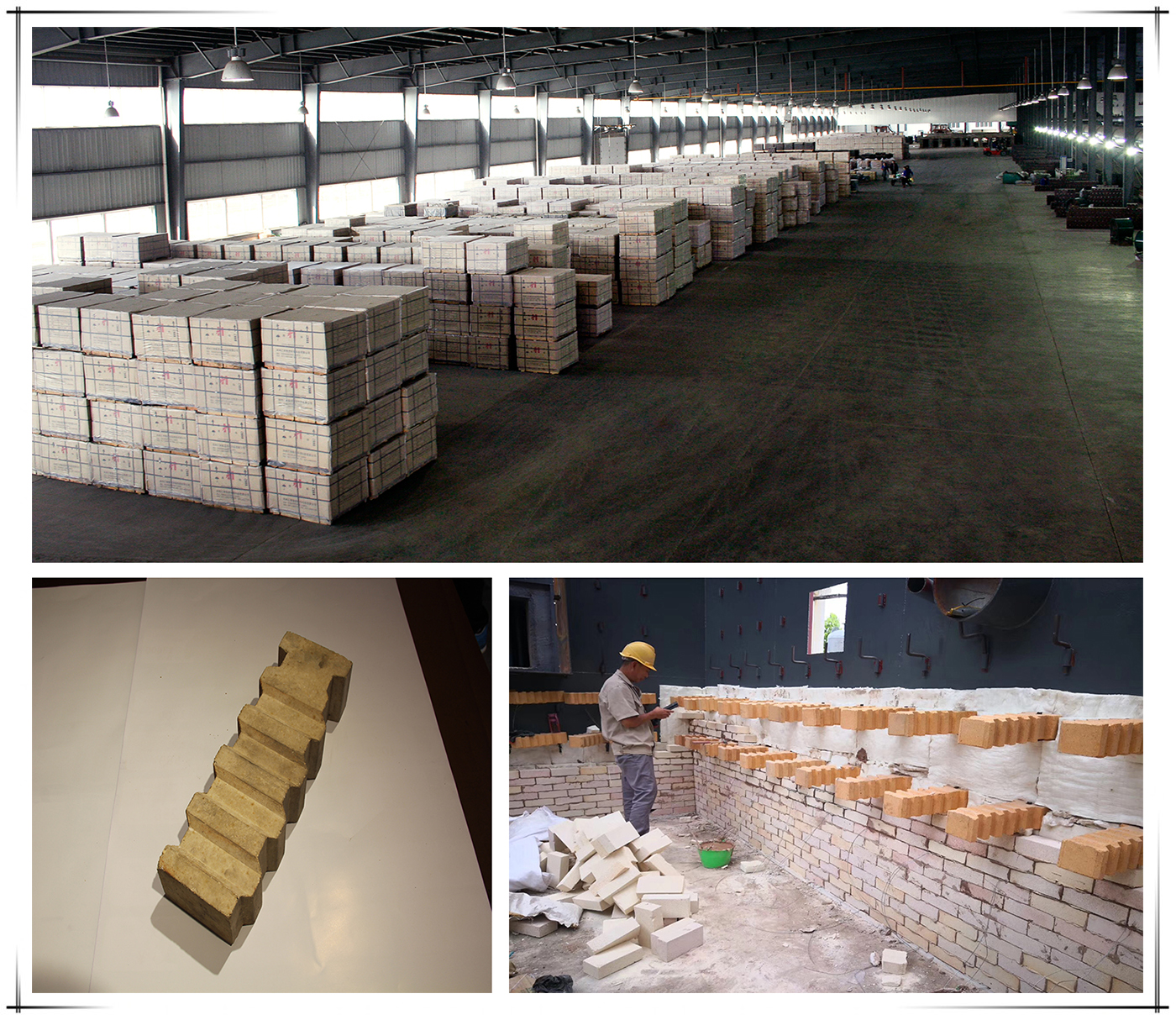

The anchor refractory brick is also called hanger brick. The anchor brick is similar to the material of the furnace lining castable, shaped by machine pressing, high temperature fired, has good thermal shock resistance and high strength, and is used on multiple heating furnaces to achieve good performance. CH Refractories has manufactured and installed high temperature anchor refractory bricks for more than 30 years, there are many different kinds of molds, when manufacturing, which will save much mold casting time. CH Refractories also can design anchor refractory brick size according to your furnace brick requirements for free and guide you how to install on site.
Applications of Anchor Refractory Brick:
●Steel furnaces
●Ceramic tunnel kiln
●Iron making furnaces
●Glass kiln and cement kiln
Advantages of CH series Anchor Refractory Brick:
●High strength
●Thermal shock resistance
●Free construction guidance ，free 3D design
●Customerize mould according to different size requirements for free
|
Brands |
CH-MG55 |
CH-MG66 |
|
Al2O3%≥ |
55 |
66 |
|
Refractoriness /℃ ≥ |
1750 |
1770 |
|
Bulk density g/cm3 ≥ |
2.2 |
2.3 |
|
Apparent porosity/% ≤ |
22 |
23 |
|
CCS/Mpa ≥ |
48 |
50 |
|
Reheating linear change/℃（1450℃） |
±0.5 |
±0.4 |
|
RUL（refractoriness under load） /℃ ≥ |
1460 |
1420 |
Use nodular cast iron as raw material .The sealing height is only 110mm.The fan-shaped plate is equipped with two slideplate block. The moving fan-shaped case handle can make one of the slide plate cast hole in working,and make another one moving to the other space of the hydraulic control system.
Corundum castable refractory is divided into cement-free corundum castable refractory and cement corundum castable refractory. Also there are different kinds of corundum castables refractory made by CH refractories company according to different raw material.
The submerged entry nozzle continuous casting protects the liquid steel from being oxidized by the ambient air when it flows into the crystallizer from the tundish.
If you need our products please write down any questions, we will reply as soon as possible.
