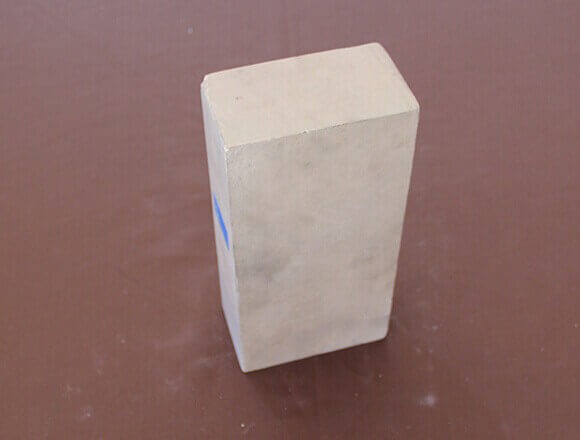

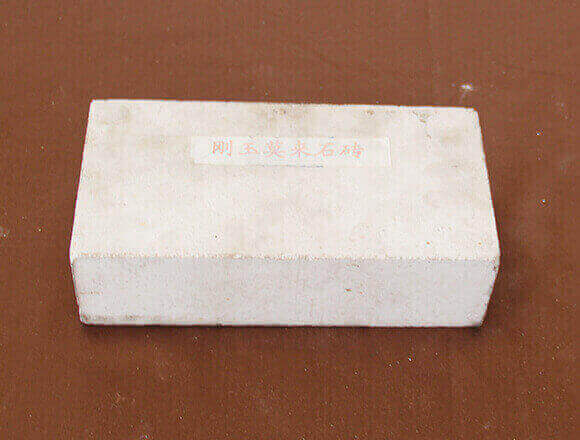

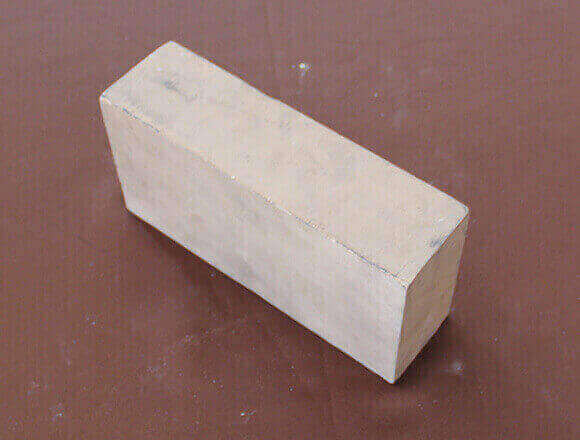

Corundum bricks include fused cast corundum brick, fused alumina corundum brick and sintered corundum brick. fused cast corundum brick is manufactured with commercial alumina and little sodium carbonate and quartz powder fusing in the quartz powder and through process of casting and annealing, and then form the shape and size through machining.
Corundum bricks include fused cast corundum brick, fused alumina corundum brick and sintered corundum brick. fused cast corundum brick is manufactured with commercial alumina and little sodium carbonate and quartz powder fusing in the quartz powder and through process of casting and annealing, and then form the shape and size through machining.
Fused alumina corundum brick is made of fused alumina particle and fines adding little fireclay and binding agent through molding by brick machine after mulling. The refractory corundum brick is fired in the temperature of 1700~1800℃ after drying .Corundum fire brick is good quality high temperature refractory product. Corundum fireproof brick has high refractoriness and good chemical stability. Because corundum firebrick is manufactured with corundum as the principal crystalline phase and contain more than 90% alumina content. Corundum can not only resist acid and alkaline slag erosion, but also the metal and glass liquid strongly.
Applications of Corundum Firebrick:
●Hot Blast Stove
●Refining Furnace
●Glass Furnace and blast Furnace
●Petrochemical Industrial Furnaces
●All kinds of high temperature kiln lining in metallurgical industry
Advantages of CH series Corundum Firebrick:
●Low apparent porosity
●Wear-resisting property
●Good high temperature bending strength
●slag resistance, good thermal shock resistance
●Free sample,Free construction guidance ,free 3D design
●Customerize mould according to different size requirements for free
Brand |
CH-DL-95 |
CH-DL-90 |
Al2O3 /% ≥ |
95 |
90 |
SiO2/% ≤ |
3.0 |
9.0 |
Fe2O3/% ≤ |
0.2 |
0.5 |
R2O /% ≤ |
0.6 |
0.6 |
Bulk Density g/cm3 ≥ |
2.9 |
2.9 |
Cold Crushing Strength / MPa≥ |
100 |
100 |
Refractoriness / ℃ ≥ |
1790 |
1790 |
Deformation Temperature 0.2MPa ℃/ ≥ |
1650 |
1650 |
Linear Change On Reheating 1600*3h /%≤ |
0.2 |
0.2 |
Thermal Stability (1100℃) /Times≥ |
1.0 |
1.0 |
The ladle shroud is a refractory material which connects the steel ladle with the tundish. The ladle shroud has the functions of stabilizing the flow state of liquid steel, preventing liquid steel from oxygenation and splashing.
Light weight fire clay brick is made of local top grade fireclay materials under the high temperature according to the lastest national standard. The temperature in the 1200-1400 ℃. Ingredients are mixed with water made of plastic material or mud, mud with extrusion or pouring shape, 1250-1350 ℃ after dry burning oxidation atmosphere.
Lightweight thermal insulating castable is formulated with different types of lightweight aggregates, powders, binders and expansion agents. lightweight castable refractory is a good new type of refractory insulation materials and energy-saving materials.
