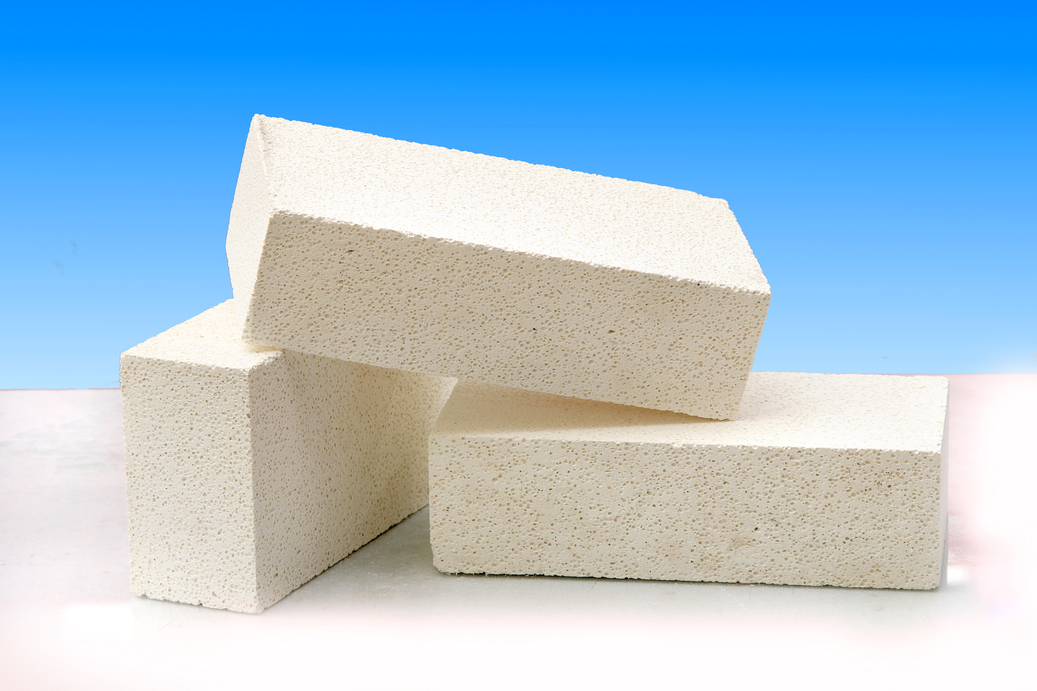

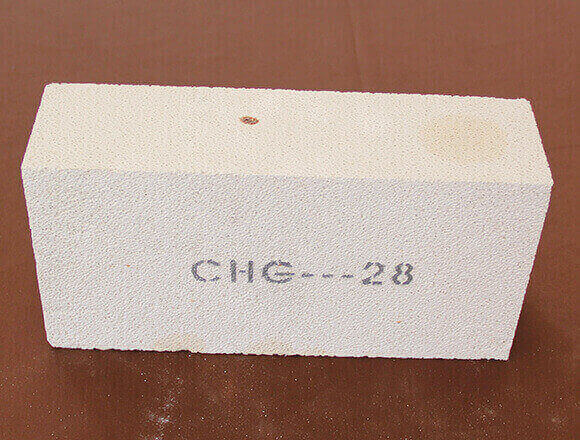

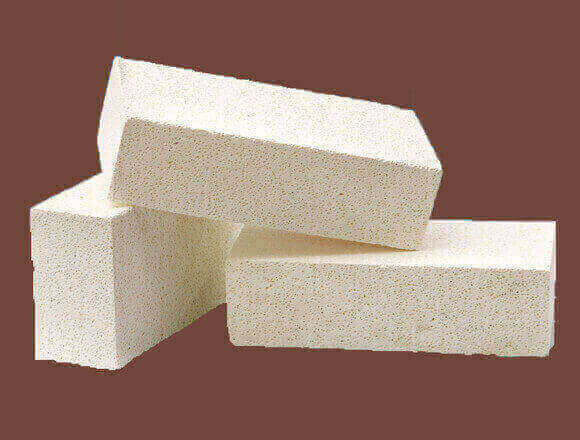

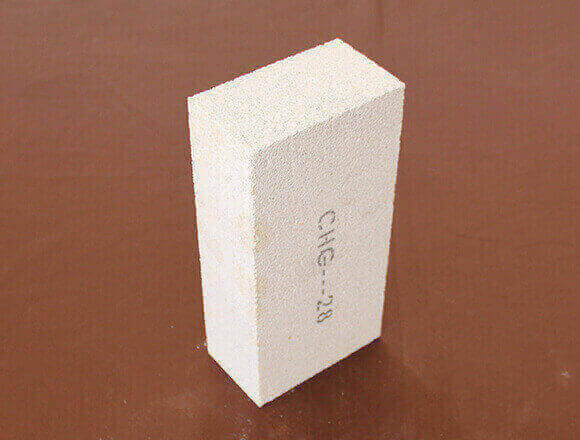

Mullite insulating brick made by CH refractories is JM series according to international standard.
Because jm23 insulation brick with smaller bulk density whose strength is not as strong as heavy weight fire bricks, when delivering, CH Refractories will package mullite insulating brick with special packages to protect mullite bricks from damage.
Mullite insulating brick made by CH refractories is JM series according to international standard.
Because jm23 insulation brick with smaller bulk density whose strength is not as strong as heavy weight fire bricks, when delivering, CH Refractories will package mullite insulating brick with special packages to protect mullite bricks from damage.
Mullite insulating brick is a new type of lightweight mullite bricks with 50-80% Al2O3, mullite (3Al2O3·2SiO2) as main crystalline phase and binder phase. Jm23 insulation brick is widely used for working face inner lining that contact flame directly because high temperature stability and high strength, low thermal expansivity and good thermal shock resistance. Mullite insulating brick became one of the research focuses recent years. Mullite insulating brick adopts high-purity raw materials and unique production process to minimize the influence of impurities and structural defects on the performance of the product. Mullite insulating brick adapts to various furnace types and different construction environment well. Mullite insulating brick is high level insulation products for kiln and furnace, which can be used for higher temperature insulating layer than common insulating bricks.
Applications of Mullite Insulating Brick:
●Glass industries iron & steel industries
●Ceramics industries non-ferrous metals industries
●Heat surface fireproof lining other fire-proof back lining
●Electrolytic Aluminum industries power generation industries
Advantages of CH series Mullite Insulating Brick:
●High strength
●Low thermal conductivity
●High temperature volume stability
●Customerize mould according to different size requirements for free
Brands |
JM23-0.6 |
JM23-0.8 |
JM23-1.0 |
JM26-0.6 |
JM26-0.8 |
JM26-1.0 |
JM28-1.0 |
JM28-1.2 |
Bulk density g/cm3 ≥ |
0.6 |
0.8 |
1.0 |
0.6 |
0.8 |
1.0 |
1.0 |
1.2 |
CCS/Mpa ≥ |
1.5 |
2.5 |
4.2 |
1.5 |
3.2 |
4.0 |
4.0 |
5 |
thermal shock resistance(1100℃)/times ≥ |
10 |
20 |
20 |
10 |
20 |
20 |
20 |
20 |
The reheating line changes by no more than 1% of the test temperature ℃/%≤ |
1300*12 |
1300*12 |
1300*12 |
1400*12 |
1400*12 |
1400*12 |
1500*12 |
1500*12 |
Thermal conductivity average temperature350±25℃(W/m.k) |
0.2 |
0.23 |
0.33 |
0.2 |
0.25 |
0.33 |
0.35 |
0.4 |
Al2O3%≥ |
48 |
49 |
50 |
55 |
57 |
57 |
60 |
67 |
Fe2O3% |
0.9 |
0.9 |
0.9 |
0.8 |
0.8 |
0.8 |
0.7 |
0.6 |
According to customers' needs, CH Refractories can provide ordinary, quick exchangeable and gas purging upper nozzles. The bowl part of the tundish nozzle is available with Al2O3-C, MgO-C and spinel-C based and the main body is Al2O3-C based.
CH Refractories manufactured casting powder is widely applied for both opening and protected CCM casting condition as well as molded casting . Our engineer will design each order of casting powder composition according to steel grade, casting speed, and other related casting condition.
Light weight fire clay brick is made of local top grade fireclay materials under the high temperature according to the lastest national standard. The temperature in the 1200-1400 ℃. Ingredients are mixed with water made of plastic material or mud, mud with extrusion or pouring shape, 1250-1350 ℃ after dry burning oxidation atmosphere.
If you need our products please write down any questions, we will reply as soon as possible.
